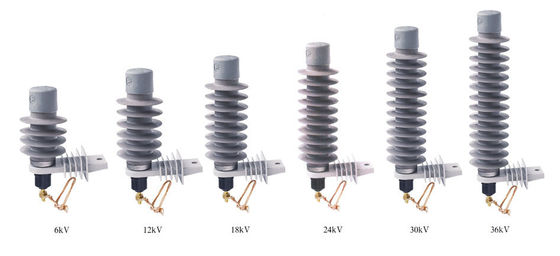

Polymeric housed lightning arrester without Gaps Nominal Discharge Current 10KA

Type

Rated Voltage

Maximum Continuous Operating Voltage

Current impulse residual voltage

2ms Rectangular current impulse withstand

4/10μs High current impulse withstand

1/4μs Lightning Current impulse

8/20μs Lightning Current impulse

30/60μs Switching Current impulse

KV(rms)

KV(rms)

KV(crest)

KV(crest)

KV(crest)

A

KA(crest)

YH10W-3

3

2.55

11.3

9

8.9

250

100

YH10W-6

6

5.1

22.6

18

16.8

250

100

YH10W-9

9

7.65

33.7

27

23.8

250

100

YH10W-10

10

8.4

36

30

23

250

100

YH10W-11

11

9.4

40

33

30

250

100

YH10W-12

12

10.2

42.2

36

27

250

100

YH10W-15

15

12.7

51

45

38.5

250

100

YH10W-18

18

15.3

61.5

54

46.2

250

100

YH10W-21

21

17.0

71.8

63

54.2

250

100

YH10W-24

24

19.5

82

72

62

250

100

YH10W-27

27

22.0

92

81

69.8

250

100

YH10W-30

30

24.4

102

90

79

250

100

YH10W-33

33

27.5

112

99

86.7

250

100

YH10W-36

36

29.0

123

108

92.4

250

100

YH10W-42

42

34.1

133

126

100.1

250

100

YH10W-48

48

39

152

150

126

400

100

YH10W-54

54

43

171

162

139

400

100

YH10W-60

60

48

208

180

160

400

100

YH10W-66

66

52.8

230

198

172

400

100
