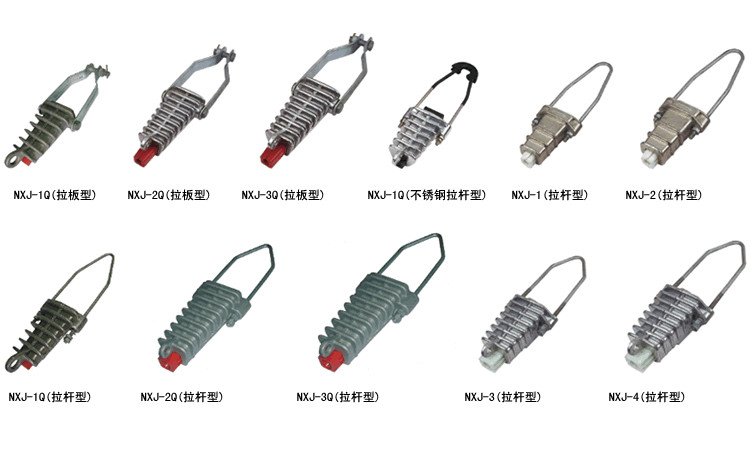

Insulation strain clamp( NXJ-Q and NXJ series)

Insulation strain clamp( NXJ-Q and NXJ series)
Insulation strain clamp( NXJ-Q and NXJ series) Insulation strain clamp( NXJ-Q and NXJ series) Insulation strain clamp( NXJ-Q and NXJ series) Insulation strain clamp( NXJ-Q and NXJ series) Insulation strain clamp( NXJ-Q and NXJ series) Insulation strain clamp( NXJ-Q and NXJ series)
Basic Information
Place of Origin: China
Brand Name: LKS
Certification: RoHs,SGS test report
Minimum Order Quantity: 100PCS
Packaging Details: normal export packing
Delivery Time: 10-15days
Payment Terms: T/T,Western Union
Supply Ability: 10000pcs
Get Best Price Contact Now

Insulation strain clamp( NXJ-Q and NXJ series) 0

Application
NXJ Series is suitable for strain clamp insulation string of 10kV aerial insulation aluminium core wire JKLYJ terminal or two ends fixing and tighten aerial insulation
● Structure feature
1,The shell made of anti-oxidate high strength aluminum alloy.
2,The core of wedge made of insulating reinforce plastics, withstand voltage : ≥18kV not breakdown one min.
3,Not remove the insulation layer,AI-core wire are current use.
4,Without waste power
5,Wedge structure
●Specification

 Type
Conductor Specification(mm2)
Aerial insulation aluminium conductor/1kV
Aerial insulation aluminiumconducor/10kV
Grip strength(kN)
Failure load (kN)
O.D for conductor(mm)
O.D for conductor(mm)
NXJ-1Q
25
8.4
14.8
2.5
10.5
35
9.8
15.8
3.4
50
11.2
17.1
4.6
70
12.8
18.8
6.7
NXJ-2Q
50
11.2
17.1
4.6
34.7
70
12.8
18.8
6.7
95
14.8
20.4
8.9
120
16.2
21.8
11.3
NXJ-3Q
120
16.2
21.8
11.3
43.4
150
18.2
23.4
13.6
185
20.2
25.0
17.3
240
22.6
27.2
22.5



Type
Conductor Specification(mm2)
Aerial insulation aluminiumconductor/1kV
Aerial insulation aluminiumconductor/1kV
Grip strength(kN)
Failure load (kN)
O.D for conductor(mm)
O.D for conductor(mm)
NXJ-1
35
9.8
15.8
3.4
13.7
50
11.2
17.1
4.6
NXJ-2
70
12.8
18.8
6.7
34.7
95
14.8
20.4
8.9
NXJ-3
120
16.2
21.8
11.3
150
18.2
23.4
13.6
NXJ-4
185
20.2
25
17.3
43.4
240
22.6
27.2
22.5
300

29.4
28.2
