TJL,TJT,TJG series T-connector and insulation cover

Basic Information

Place of Origin:	China
Certification:	IS09001,ISO14001

Minimum Order Quantity:	100pcs
Packaging Details:	Normal Export packing
Delivery Time:	7-10daysdays
Payment Terms:	T/T，Western Union

Get Best Price Contact Now

Product Description

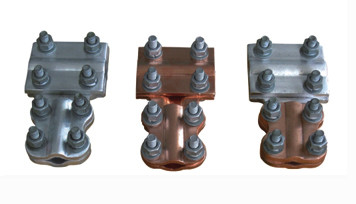

TJL,TJT,TJG series T-connector and insulation cover 0

TJL,TJT,TJG series T-connector and insulation cover

Application

TJL,TJT,TJG series T-connector is suitable for the branch connection of 10kV aerial insulation cable. Also used for the
T-shape connection with electric facilities and serial bus in power plant and transformer substation. Insulation cover and
T-connector are used together. It action is insulation protection.

Insulation cover performance feature

◆ Withstand voltage: ≥18kV keep voltage one minute not breakdown
◆ Insulation resistance: ＞ 1.0x10¹⁴Ω
◆ Environment temperature: -30℃~90℃
◆ Weather proof performance: have good performance after 1008 hours artificial climate aging test.

Specification

Item No.	Suitable Conductor (mm²)		Suitable Insulation Cover size
Item No.	Main	Branch	Suitable Insulation Cover size
TGL,TJT,TJG-1.1	35~50	35~50	TJL,TJT,TJG50~240
TGL,TJT,TJG-2.1	70~95	35~50
TGL,TJT,TJG-2.2	70~95	70~95
TGL,TJT,TJG-3.1	120~150	35~50
TGL,TJT,TJG-3.2	120~150	70~95
TGL,TJT,TJG-3.3	120~150	120~150
TGL,TJT,TJG-4.1	185~240	35~50
TGL,TJT,TJG-4.2	185~240	70~95
TGL,TJT,TJG-4.3	185~240	20~150
TGL,TJT,TJG-4.4	185~240	185~240
